Product Description
Power: AC220V/110V, 50HZ/60HZ,
Working Temperature: -20℃~50℃
Working Humidity: <90%
Opening/Closing time:2S/6s
Wattage: 150W
Dimension: 435mm×420mm×1205mm (excluding barrier arm), weight is about 55KG + barrier arm
DC12V Auxiliary Power Output: DC12V output, 100mA max
Safety sensors options: The control panel has the ability to connect all or any of the following safety sensors: Exit/Entry Wand, to automatically open or close the boom gate Loop Detector, to automatically open or close the boom gate PE (photoelectric sensors), to prevent the boom gate from closing on an car or person.
|
Power supply |
AC220V/ AC110V barrier gate |
Length of arm |
1m-6m |
|
Time for Up/Down |
6s |
Motor’s power |
150w |
|
Environment temperature |
-20°C~+55°C |
Net weight |
50KG |
|
Relative humidity |
≤90% |
Speed of Motor |
1400r/m |
Main Features
*Manual release
*Machine core with compression spring
*Aluminum alloy motor, precision and good at thermal radiating
*Intelligent overheating protection system, solving the problem of heat-protection
*Double safety limit switches (photoelectric limit switch/mechanical limit switch)
*Reversing on obstacle
*Auto-closing
*Special blancing structure design makes the barrier boom has the feature of slow-staring,
fast-running, slow stopping
*90 degree running which excludes the accident caused by 360 degrees running
*Special low-speed motor with aluminum casing, one-piece gear box design, low noise, fast heat-
dissipation
Detailed Description

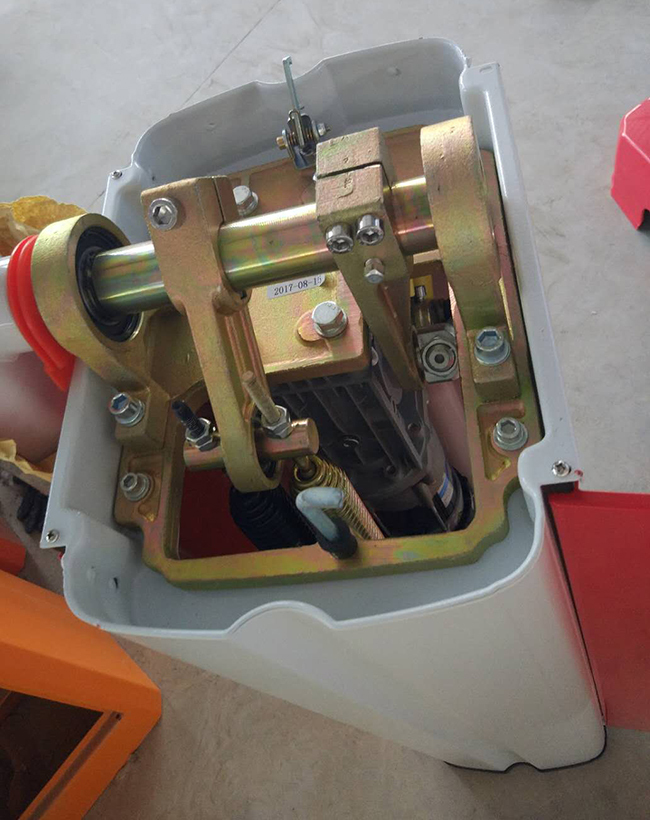

2 Strong and durable spring,Free maintenance

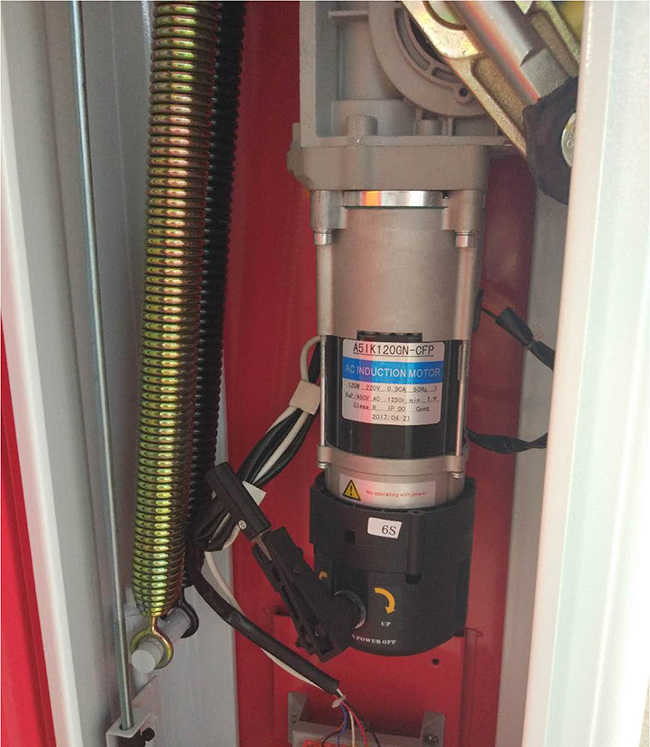

Powerful electric motor
Strong and stable structure, easy installation ,

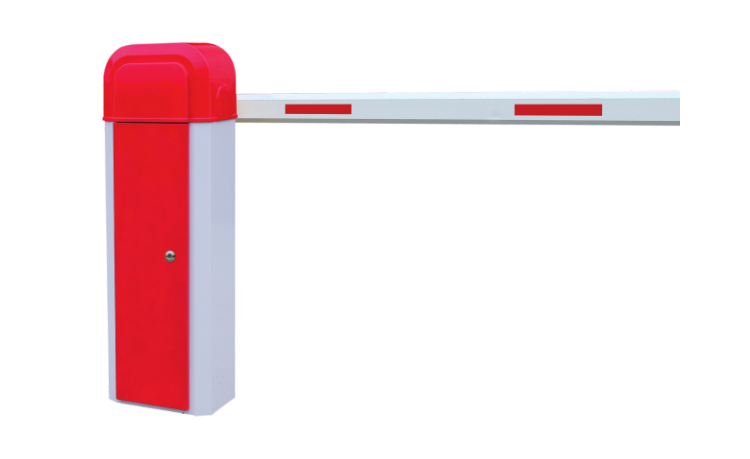

Different color
